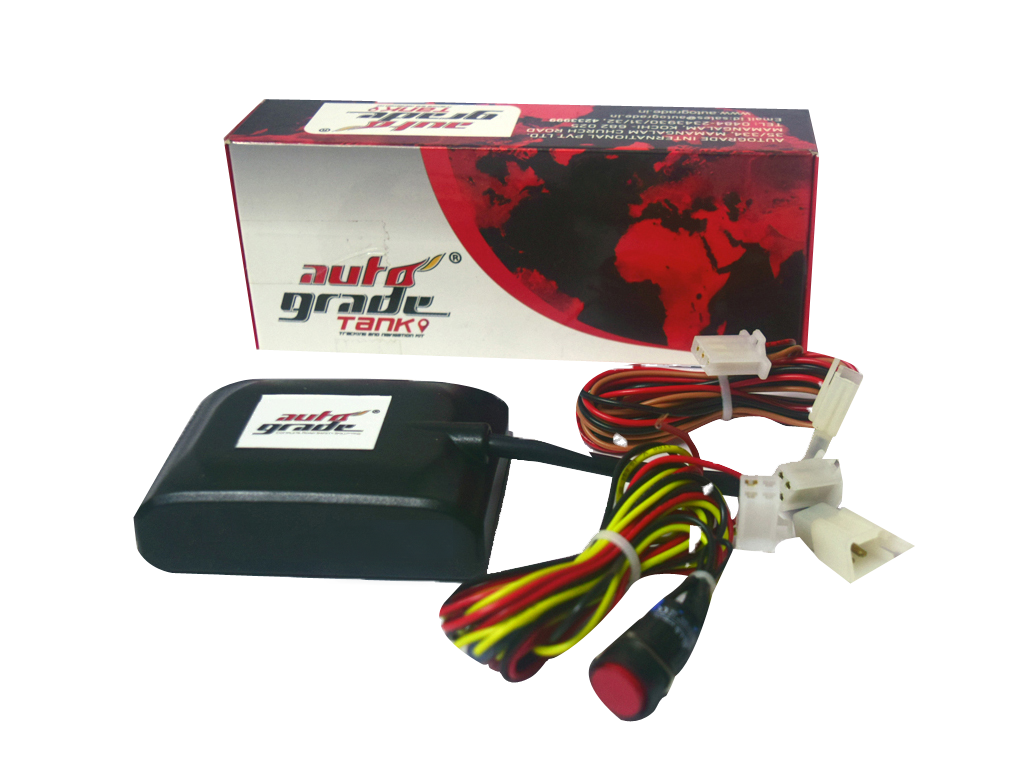

Autograde TANK Pro Vehicle Tracking System(VTS)

Autograde’s TANK Pro integrates vehicle tracking, transport and safety solutions. The system uses the GPS technology for transmitting key vehicle information from our web server.

About Autograde TANK Pro Vehicle Tracking System(VTS)

    Autograde TANK Pro works on GPS-GSM architecture. Major components include:

  • GPS Tracking Device
  • T.A.N.K (Tracking And Navigation Kit)
  • GPS Tracking Server
  • User Interface

How Autograde TANK Pro Vehicle Tracking System Works

  • GPS Tracking Device is fitted in the vehicle. The device captures GPS information and vehicle information and transmit at regular intervals to the central server.
  • GPS Tracking Server receives the data from the tracking devices and stores the data in the server. The server will then serve this information to the User Interface
  • User Interface is the software application which enables viewing of vehicle data.
  • Autograde's T.A.N.K system combines the use of automatic vehicle location with a software that collects these data for a comprehensive picture of the vehicle location. T.A.N.K works on a GPS-GSM architecture and the features include large flash memory, In Vehicle Monitoring System (IVMS), Remote logs reading, precise online tracking, remote monitoring, over speed warning etc.

Product features of Autograde TANK Pro Vehicle Tracking System(VTS)

  • Over-Speed Indicator :Autograde’s TANK have the capability to track vehicle speed and will send alerts when drivers exceed speed
  • Anti-Theft Alerts :Any efforts to tamper the power supply will be informed via web-application and SMS.
  • Live tracking: Live Tracking helps track fleets on a single screen and trace back facility, to draw the route through which the fleet travelled.
  • IP 65 protection: Provides strong protection against water and dust.

Product Components of Autograde TANK Pro Vehicle Tracking System

  • Microcontroller Unit :32 bit processor controls the entire functionality of the device.
  • RS232 : A standard communication protocol for short range communication.
  • GPS Global Positioning System, is a global navigation satellite system (GNSS) that provides location and time information.
  • Accelerometer An accelerometer is an electromechanical device that will measure acceleration forces.

Autograde TANK Pro Vehicle Tracking System(VTS) Product Specifications

  • Input voltage range : 7-30V
  • Power consumption : 0.8 to 1W
  • Operating temperature: -40 to 85 Degree Celsius
  • Storage temperature :-40 to 85 Degree Celsius

Get your price for Autograde TANK Lite Vehicle Tracking System
