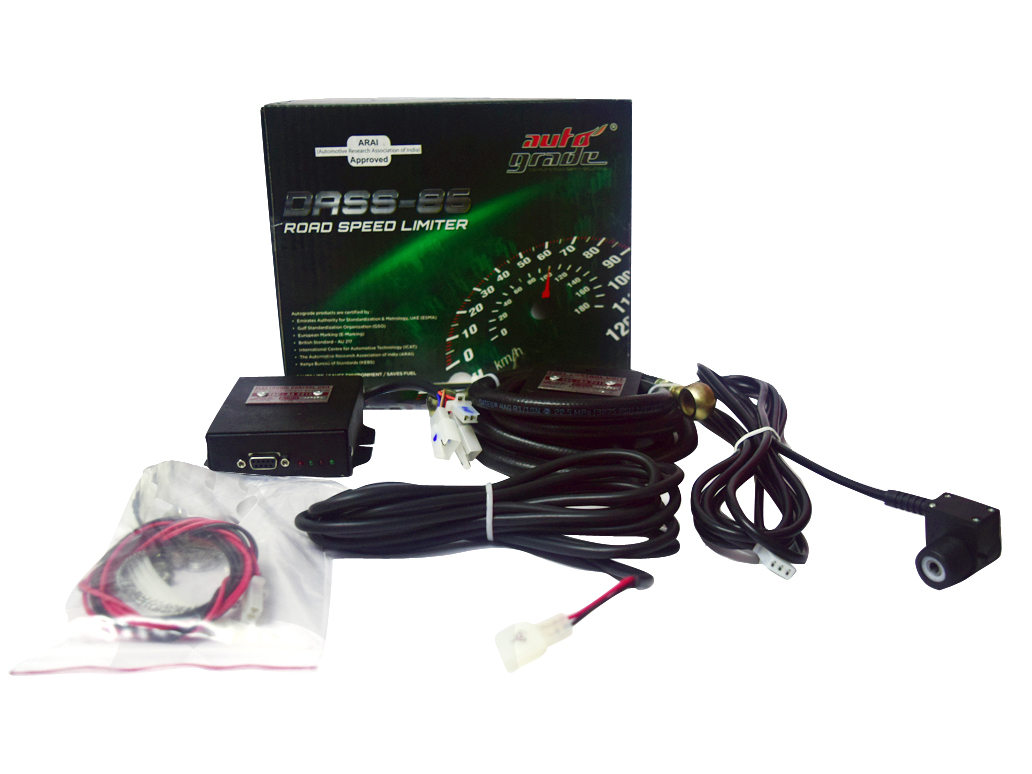

Product Components of Autograde Dass-86 Fuel Control Speed Governor

Electronic Control Unit (E.C.U)

ECU is a microprocessor based controlling device, which constantly monitors the vehicle speed and sends signals to the Control Unit accordingly.

Fuel Control Unit (F.C.U)

FCU is a solenoid valve mechanism which will operate according to the pulses or inputs from the ECU.

Speed Sensor / Speed Adaptor

Speed sensor is a square wave pulse generating equipment fitted to the gearbox output.

How Autograde Dass-86 Fuel Control Speed Governor Works

Speed sensor is a square wave pulse generating equipment fitted to the gearbox output.

• The speed sensor is connected to the gearbox and it will detect the speed and send inputs to the Electronic Control Unit (ECU). The ECU constantly compares this speed signal to the set speed range.
• The Fuel Control Unit (FCU) is connected between the fuel filter and fuel pump. The FCU is controlled by the ECU which monitors fuel usage.
• Based on the inputs, the ECU closes the solenoid valve thereby reducing the fuel to the engine and hence the speed.
• This ensures that engine is not starved at all times. Even when the solenoid is closed, a certain amount of fuel flows to the engine through the bypass valve. By doing this, the fuel consumption and the speed of the vehicle can be controlled.

Product Specifications for Autograde Dass-86 Fuel Control Speed Governor

• Operating Voltage:11V to 32V
• Operating Current:950mA
• Operating Temperature (Engine Mounted):-20°C to 100°C
• Operating Temperature (Cabin Mounted):-20°C to 85°C
• Fuel:Diesel/Petrol
• Sensor: Mechanical & Electronic Sensor
