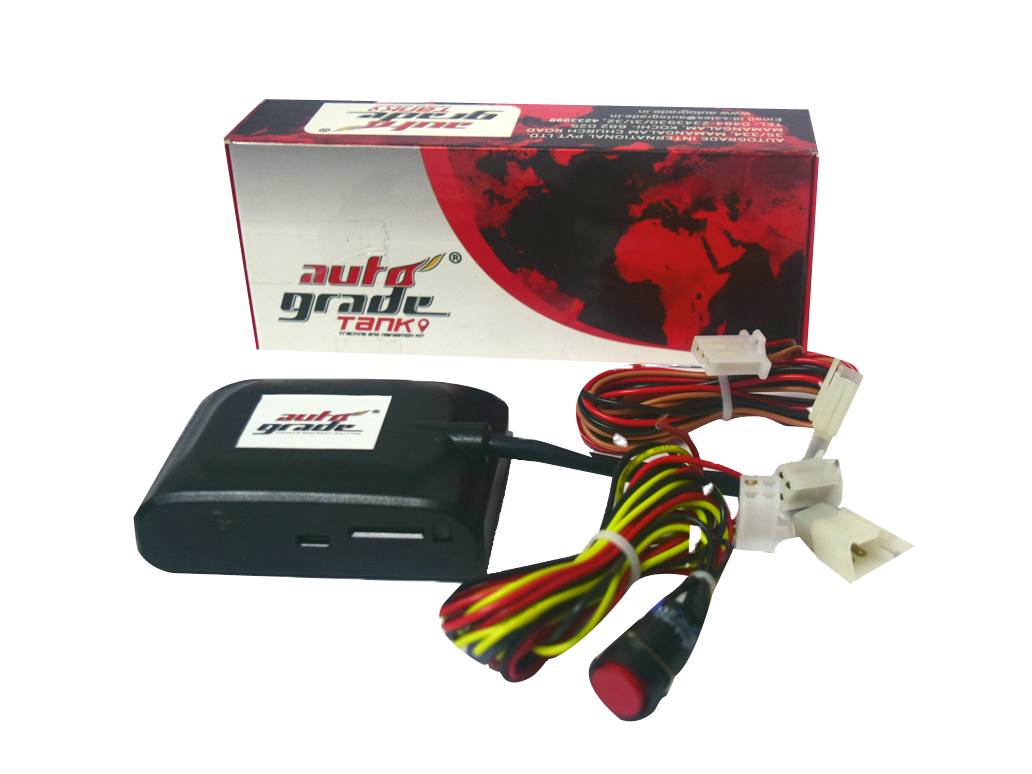

Autograde TANK Lite Vehicle Tracking System(VTS)

Autograde’s TANK Lite Vehicle Tracking System combines the use of automatic vehicle location in individual vehicles with software that collects these data for a comprehensive picture of the vehicle location.

About Autograde TANK Lite Vehicle Tracking System

    Autograde TANK works on GPS-GSM architecture. Major components include:

  • GPS Tracking Device
  • T.A.N.K (Tracking And Navigation Kit)
  • GPS Tracking Server
  • User Interface

How Autograde TANK Lite Vehicle Tracking System Works

  • GPS Tracking Device is fitted in the vehicle. The device captures GPS information and vehicle information and transmit at regular intervals to the central server.
  • GPS Tracking Server receives the data from the tracking devices and stores the data in the server. The server will then serve this information to the User Interface
  • User Interface is the software application which enables viewing of vehicle data.
  • Autograde's T.A.N.K system combines the use of automatic vehicle location with a software that collects these data for a comprehensive picture of the vehicle location. T.A.N.K works on a GPS-GSM architecture and the features include large flash memory, In Vehicle Monitoring System (IVMS), Remote logs reading, precise online tracking, remote monitoring, over speed warning etc.

Outstanding Features of Autograde TANK Lite Vehicle Tracking System

  • Over-Speed Indicator :Autograde’s TANK have the capability to track vehicle speed and will send alerts when drivers exceed speed
  • Anti-Theft Alerts :Any efforts to tamper the power supply will be informed via web-application and SMS.
  • Live tracking: Live Tracking helps track fleets on a single screen and trace back facility, to draw the route through which the fleet travelled.
  • 16Mb flash memory : Data’s which are not successfully sent will be stored in flash will resend on finding favorable network conditions.

Product Components of Autograde TANK Lite Vehicle Tracking System

  • Microcontroller Unit :32 bit processor controls the entire functionality of the device.
  • LI-ION Battery : Used as an internal power backup for the device.
  • CAN: Controller Area Network is a serial communication bus originally developed for the automotive industry
  • USB2UART : It is a bridge between UART and USB communication.

Product Specifications of Autograde TANK Lite Vehicle Tracking System

  • Input voltage range : 7-30V
  • Power consumption : Typically 50mA, Maximum 2A
  • Operating temperature: 0 to 80 Degree Celsius
  • Storage temperature :0 to 85 Degree Celsius

Get your price for Autograde TANK Lite Vehicle Tracking System
